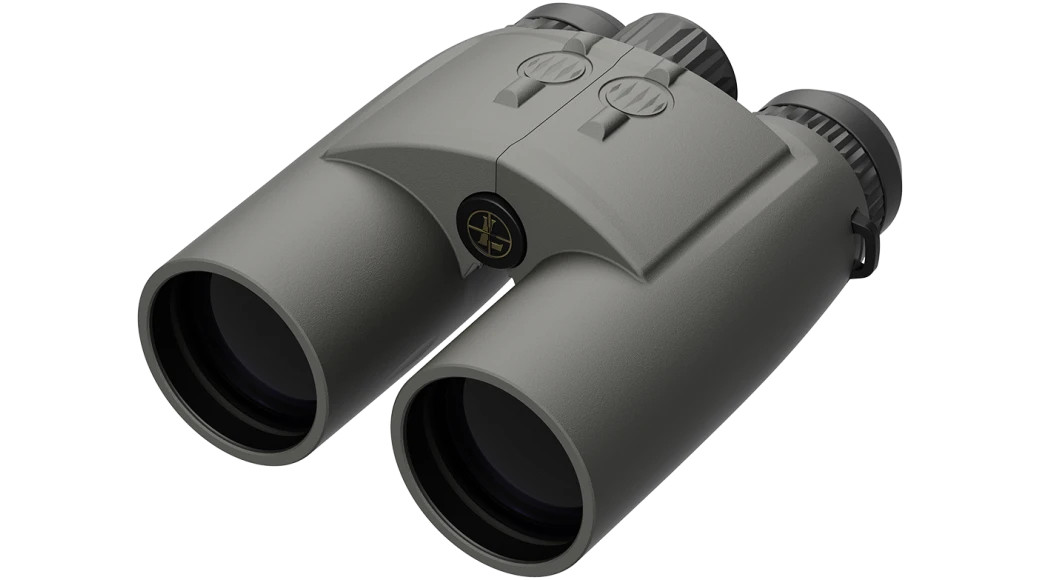

The Leupold BX-4 Range HD Gen 2 12x50 TBR/W solves the most frustrating hurdle in the field: the awkward, time-consuming swap between your binos and a rangefinder. By fusing a high-performance laser rangefinder with elite-level glass, this system keeps your eyes on the target while delivering precise ballistic solutions in one seamless view.
The real advantage here is speed. Instead of ranging, calculating, and then adjusting, the onboard DNA engine and TBR/W software handle the math for you. You get real-time data for distance, shot angles, and wind holds displayed instantly. It effectively removes the guesswork and compression delays from your workflow, letting you move from spotting to a confirmed shot in a single step.
Built for the long haul, the 12x magnification and 50mm objective lenses pull in exceptional detail even as the light fades. The high-contrast red OLED display stays sharp against dark timber or early morning shadows, and the lightweight magnesium chassis ensures that extended glassing sessions won't leave your arms burning. It is a streamlined, rugged powerhouse designed to make every second count.
Key Features
- 12x Magnification: Enhanced target identification and clarity for spotting beyond 1,000 yards.
- TBR/W Ballistic Engine: Delivers instant angle compensation and wind holds to eliminate manual calculations.

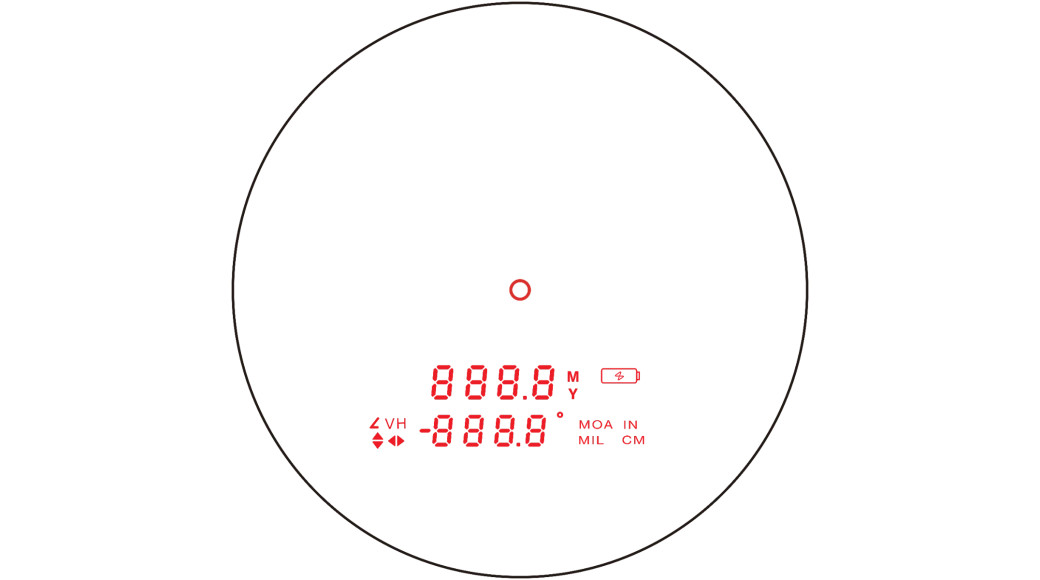

- High-Contrast Red OLED: Crisp, readable data overlays that won't wash out in low light or bright sun.
- Magnesium Chassis: Maximum structural rigidity and durability with a reduced carry weight to prevent fatigue.
Technical Specifications
- Model: Leupold BX-4 Range HD Gen 2 TBR/W 12x50
- Magnification: 12x | Objective Lens Diameter: 50mm
- Max Range: 4,000 yd (Reflective) | 2,200 yd (Trees) | 1,500 yd (Deer)
- Ballistic Tech: TBR/W (True Ballistic Range/Wind) | Archer's Advantage | Bow Mode
- Optical System: Elite Optical System | HD Clarity | Red OLED Display
- Field of View: 279 ft @ 1,000 yd (Linear) | 5.2° (Angular)
- Eye Relief: 14mm | Exit Pupil: 4.2mm | Close Focus: 13 ft
- Diopter Range: -3.5 to +3.5 | Interpupillary Distance: 60mm – 77mm
- Accuracy: 0.7 yd (<125 yd) | 1 yd (<1,000 yd) | 0.2% (>1,000 yd)
- Angle Compensation: Integrated
- Power Source: CR2 Battery | 3,000 Actuations
- Chassis: Waterproof | Fogproof | Tripod Ready (1/4-20)
- Dimensions: 6.25" Length | 37 oz Weight
When precision matters, and hesitation isn’t an option, the BX-4 Range HD Gen 2 delivers a complete targeting solution in one system. Get it from SMKW, where serious shooters source gear that performs under real-world conditions.
