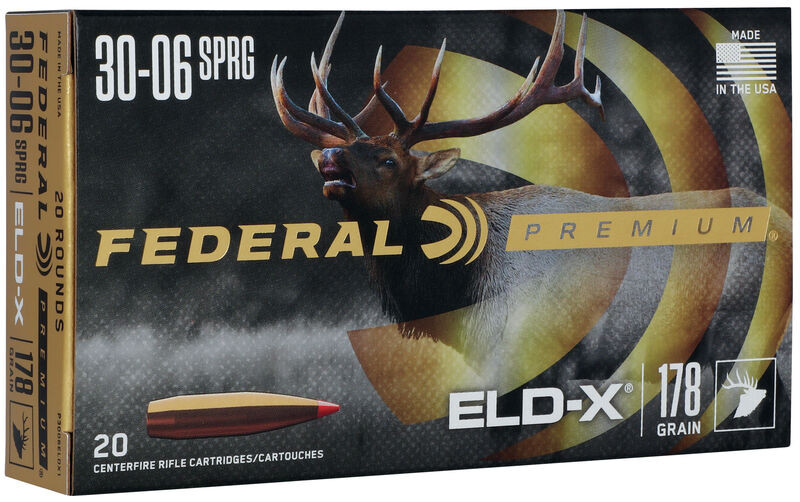

The Federal Premium .30-06 Springfield 178-grain Extremely Low Drag-Expanding (ELD-X) Polymer Tip Brass 20-round box is a top-tier centerfire rifle cartridge engineered specifically for harvesting elk, mule deer, whitetail, and black bear at both close quarters and extended downrange distances. A primary friction point when hunting with traditional soft-point or standard tipped projectiles is erratic terminal performance across broad velocity spectrums—either over-expanding violently at close range or failing to expand at long ranges where impact velocity decays. Federal Premium resolves these ballistics and terminal limitations by pairing its match-grade reloadable brass cases with the advanced 178-grain ELD-X bullet, delivering match-grade trajectory precision, high weight retention, and reliable vital-zone expansion across all hunting distances.
The primary technical advantage centers on Hornady’s ELD-X projectile design paired with a 0.552 G1 ballistic coefficient. Featuring a Heat Shield® polymer tip that resists aerodynamic heating and nose deformation during flight, the bullet maintains its streamlined meplat to minimize drag and resist wind drift. An internal InterLock® ring mechanically locks the heavy copper jacket to the lead-alloy core; upon high-velocity impact, the tip drives backward to initiate controlled expansion while the ring prevents jacket separation, retaining up to 50% to 60% of its weight for deep bone-penetrating depth. At lower extended-range velocities, the polymer tip continues to act as a mechanical wedge, guaranteeing reliable mushrooming.
Launching its heavy 178-grain polymer-tipped bullet at 2,750 FPS, this Federal Premium loading optimizes the casing capacity of the classic .30-06 Springfield to deliver exceptional kinetic energy retention, flat trajectories, and manageable felt recoil. Assembled using premium reloadable Federal brass cases, clean-burning propellants, and non-corrosive Gold Medal Boxer primers, it guarantees uniform chamber pressure, tight standard deviations, and smooth feeding across long-action bolt-action rifles and semi-automatic hunting platforms. It is an outstanding choice for mountain hunts and open-country big game pursuit.
Key Benefits
- Hornady ELD-X Projectile: Heat Shield® polymer tip resists aerodynamic heating deformation to preserve ultra-low drag flight.
- High 0.552 G1 Ballistic Coefficient: High-BC boat-tail profile minimizes aerodynamic drag, flattens trajectory, and resists wind drift.
- InterLock® Core-Retention Ring: Mechanically locks jacket to core to prevent separation and preserve weight for deep penetration.
- All-Velocity Terminal Performance: Delivers rapid, controlled expansion at both high close-range and low long-range impact speeds.
Technical Specification
- Ballistics: .30-06 Springfield (.30-06 Spring) | 2,750 FPS Muzzle Velocity | 0.552 G1 Ballistic Coefficient | Long-Range Hunting Profile
- Projectile: 178 Grain | ELD-X® (Extremely Low Drag-eXpanding) | Heat Shield® Polymer Tip | InterLock® Ring | Boat-Tail Base
- Case/Primer: Precision-Drawn Virgin Reloadable Federal Brass Case | Gold Medal Non-Corrosive Boxer Primed
- Logistics: 20 Rounds Per Box | Federal Premium Series
- Dimensions: Standard .30-06 Springfield Geometry | Long-Action Rifle Compatible | SKU: P3006ELDX1
- Application: Big Game Hunting, Elk, Mule Deer, Whitetail Deer, Black Bear, and Extended-Range Pursuit
- Standards: SAAMI Compliant | Federal Premium Factory Quality Control Benchmarks
If you’re running a .30-06 platform and need consistent external ballistics with reliable terminal performance across variable distances, this load solves the common expansion and energy loss issues found in conventional hunting bullets. Get proven, repeatable results backed by controlled manufacturing standards—available now from SMKW, a trusted source for premium rifle ammunition.
