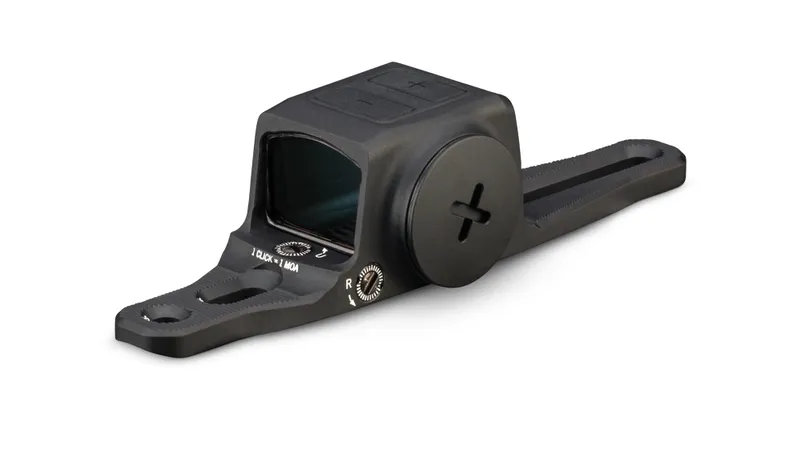

The Vortex Viper SG Shotgun Enclosed Multi-Reticle Red Dot Sight is a specialized electro-optic system engineered to eliminate cheek weld issues and target acquisition failures caused by blocked emitters. A primary operational limitation when deploying traditional micro red dots on shotguns is the reliance on clunky adapter plates that raise the line of sight and ruin a natural point of aim, while open reflex housings remain vulnerable to mud, rain, or unburnt powder. Vortex resolves this structural headache by sealing the emitter inside a fully enclosed, nitrogen-purged 6061-T6 aluminum housing and integrating a direct-to-receiver mount.
Built specifically for turkey hunters and wingshooters, this optic clamps directly to standard drilled and tapped shotgun receivers natively without stacked-plate errors, ensuring an ultra-low profile. The optical system incorporates an aspherical glass lens for distortion-free, edge-to-edge clarity and a dynamic Multi-Reticle system that cycles through seven distinct layouts. Operators can utilize a precise 3 MOA center dot for stationary targets, a 32 MOA circle tuned for full-choke turkey patterns, and an outer 65 MOA ring representing a modified-choke spread for rapid wingshooting calculations.
Designed for maximum field reliability, the optic features motion-activated shake-awake technology and a side-loading CR2032 battery that provides up to 50,000 hours of runtime without losing zero during power swaps. With 12 brightness settings accessed via tactile top buttons and heavy-recoil rated construction, this sight ensures a clear picture against fast-moving birds in blowing dust or pouring rain.
Key Benefits
- Integrated Direct-to-Receiver Mount: Built-in universal mounting rail clamps directly to drilled and tapped shotgun receivers natively for a natural, ultra-low line of sight.
- Choke-Pattern Calibrated Reticles: Multi-reticle system cycles through seven layouts, including a 32 MOA full-choke reference circle and a 65 MOA modified-choke outer ring.
- Fully Enclosed 6061-T6 Housing: Heavy-recoil-rated aluminum box enclosure completely isolates the emitter from rain, snow, mud, and unburnt powder.
- Side-Access Battery System: Side-loading CR2032 battery port allows for seamless power swaps in the field without unmounting the optic or rezeroing.
Technical Specifications & Optical Properties
- Product Identification: Vortex Viper SG Enclosed Shotgun Micro Red Dot | UPC 843829146111
- Manufacturer | Housing Material: Vortex Optics | Aircraft-Grade 6061-T6 Aluminum
- Mounting Standard | Dimensions: Integrated Universal Mount (Direct-to-Receiver) | Length 4.86 in | Weight 2.14 oz

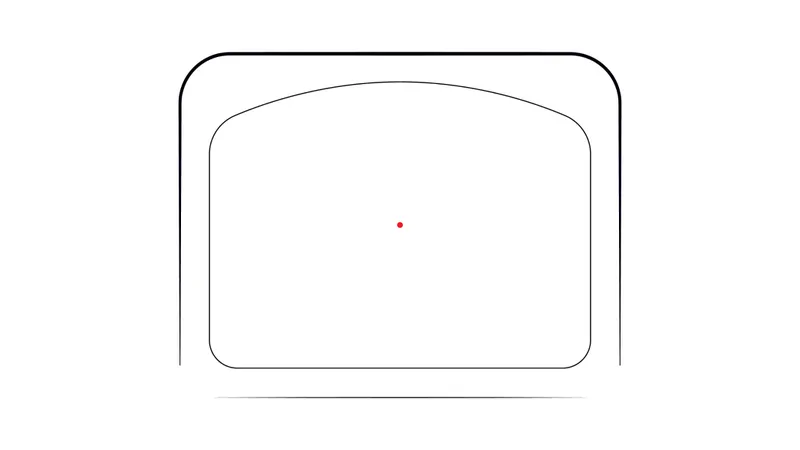

- Reticle | Illumination: 7-Layout Multi-Reticle System (3 MOA Dot | 32 MOA Circle | 65 MOA Ring) | 12 Settings (10 Daylight, 2 NV) | 1 MOA Click Adjustments
- Power Architecture: Side-Loading CR2032 Lithium Metal | Up to 50000 Hours Runtime | Motion-Activated Shake Awake
- Optical Glass: Aspherical Lens Architecture | Fully Enclosed Emitter Housing | Nitrogen Purged
When you are tracking a tom turkey or waiting in a waterfowl blind, hardware reliability is non-negotiable—and that applies to your optical system just as much as your firearm. Smoky Mountain Knife Works is your trusted source for premium hunting optics, shotguns, and shooting accessories. Equip your firearm with the Vortex Viper SG Enclosed Multi-Reticle Red Dot Sight today and visually map your pattern density before you pull the trigger.
